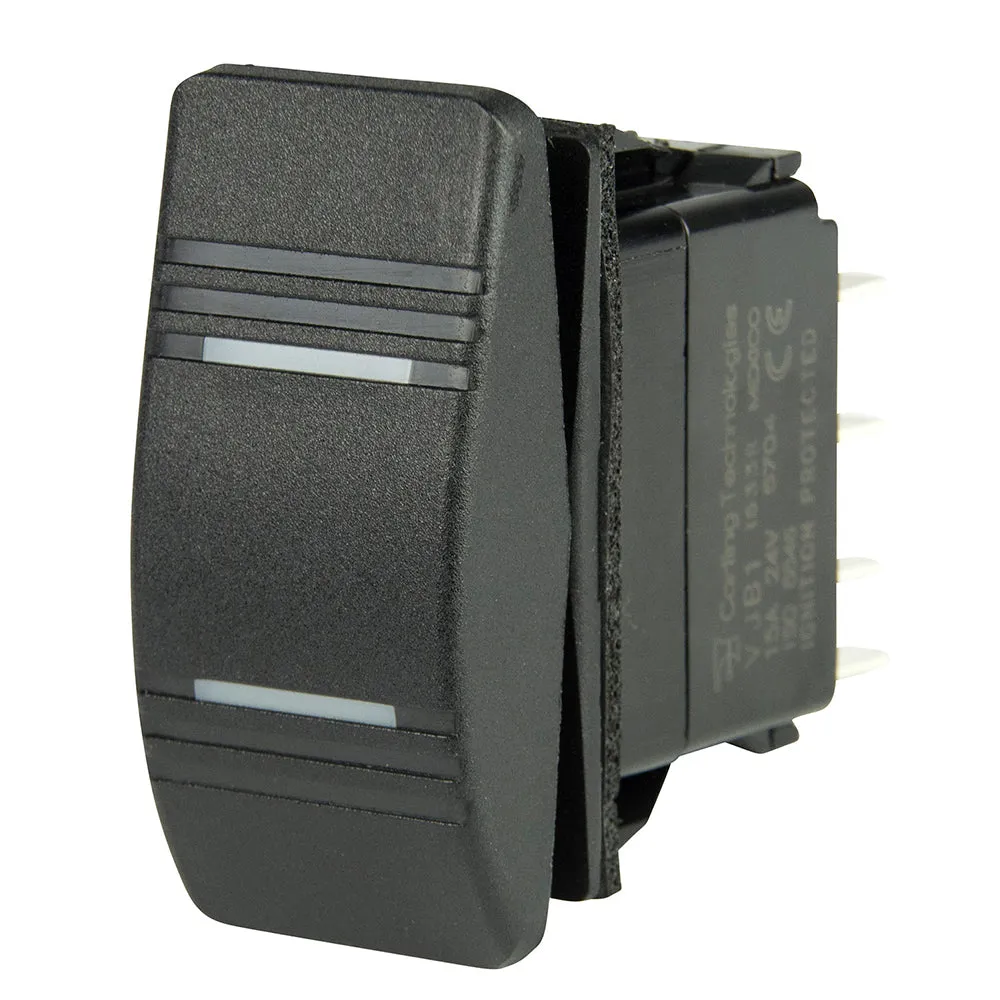

DPDT Contura Switch - 2-Amber LEDs - ON/OFF/ON

Double pole, double throw switch turns two of four circuits on at a time. Common applications combining nav lights and anchor light with independent bulbs, maintained single windshield wiper control. Contura switches are rated to IP66, high-pressure wash resistant. Recommended for replacements in waterproof electrical panels with rocker switches to ensure waterproof integrity. The black and gray switches and covers are interchangeable with similar switches used as original equipment on many common boat types.

Features:

• Nominal voltage 12V/24V DC
• Rated for 20A at 12V DC, 15A at 24V DC
• 1/4" blade terminals
• Includes two Amber LEDs
• Snap-in mounting to fit panel hole 1.45" x .83" into panels .093" to .187" thick
• Same as Cole Hersee part number 58332-26

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to .

Specifications:

• Throw/Pole: DPDT
• Color: Black
• Action: On/Off/On
• Box Dimensions: 2"H x 3"W x 5"L WT: 0.1 lbs
• UPC: 870216046471
