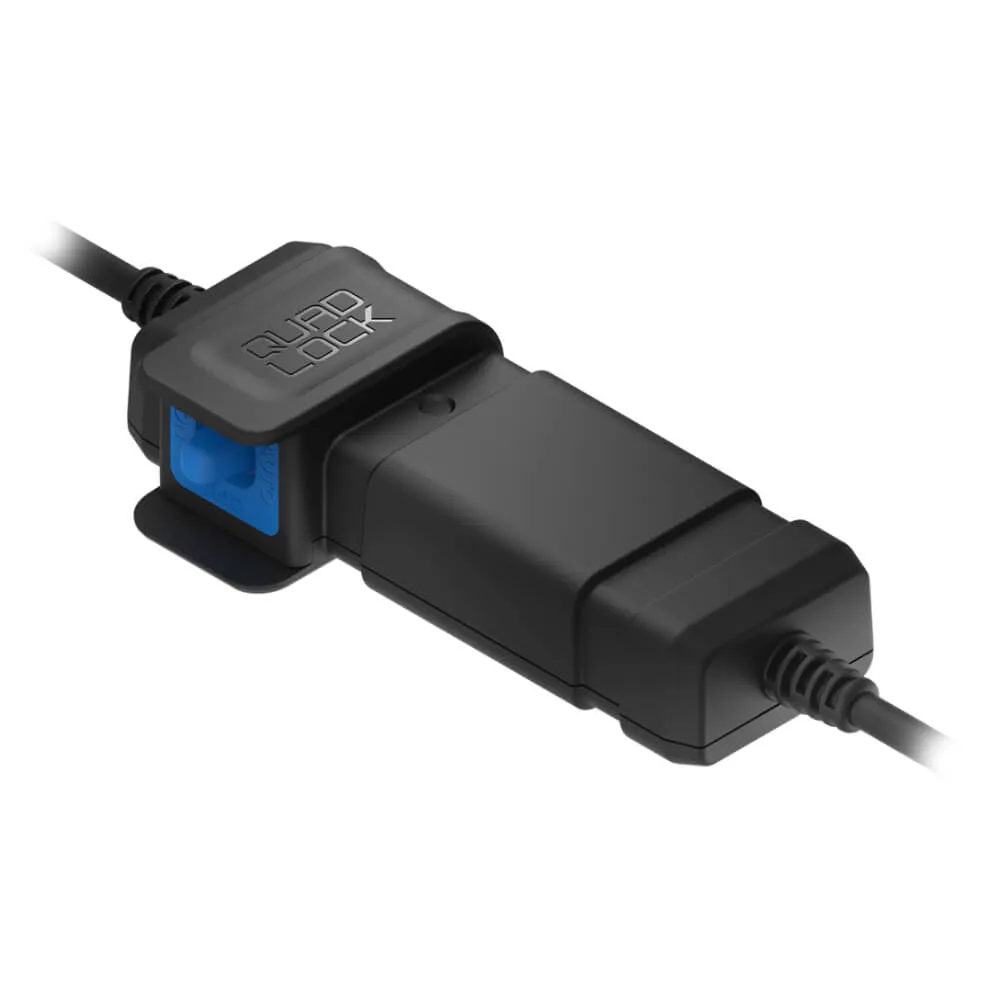

The Quad Lock® Waterproof 12V to USB Smart Adaptor offers a comprehensive solution for powering your Quad Lock® Weatherproof Wireless Charging Head while on the move. Designed for motorcycles, boats, caravans, and ATVs, this smart adaptor ensures a seamless and reliable power source in any environment.
Switching between On, Off, and Auto modes has never been easier, providing versatility for different power scenarios. Connect the Smart Adaptor to a constant 12V - 24V supply using the On mode, ideal for boats and caravans. The Auto function is perfect for motorcycles and ATVs, preventing battery drain by activating only when the input voltage rises above 13.5V and turning off when it drops below 12.5V.
Safety is paramount with the Quad Lock® Waterproof 12V to USB Smart Adaptor. Enjoy peace of mind with Reverse Polarity Protection, safeguarding your battery if the Ring Terminal Cables are connected incorrectly. The in-line 3A rated fast blow fuse adds an extra layer of security, protecting against battery drain in the rare event of a fault.
Upgrade your charging experience with the Quad Lock® Waterproof 12V to USB Smart Adaptor - where reliability, convenience, and safety converge for all your outdoor adventures.
*Please Note: Weatherproof Wireless Charging Head not included
FEATURES
TECHNICAL SPECIFICATION
- Output: USB-A up to 18W max (5V/3A, 9V/2A, 12V/1.5A)
- Input: 12V - 24V DC
- Auto switching mode provides power only when engine is running to avoid battery drain
- Reverse polarity protection
- In-line safety fuse
- Waterproof 12V to USB Smart Adaptor housing made from polycarbonate construction
- TPU Toggle Switch
- PVC cables, SAE, USB-A and Ring Terminals over-moulds
- Brass Ring Terminals
- IP66 rated Waterproof 12V to USB Smart Adaptor unit and cable housing
- IP64 rated USB seal boot cover
WHAT'S INCLUDED
- 1 x Quad Lock® Waterproof 12V to USB Smart Adaptor with 1.5M USB-A female port and 10cm SAE cable hard-wired
- 1 x 1M SAE to ring terminal cable with an in-line fuse
- 1 x USB-A sealing boot for USB-A to USB-C cable supplied with Weatherproof Wireless Charging Head
- 5 x Zip ties
